Package : 1
Length : 55 cm
Width : 35 cm
Height : 10 cm
Diameter :
Gross Volume : 19.3 l

Water trap frame/ Cleaning plug/ Cover cap/ Outlet pipe/ Outlet connector: Polypropylene plastic
Sealing ring/ Gasket/ Seal: Synthetic rubber
Waste pipe: Polypropylene plastic, Synthetic rubber
Strainer: Stainless steel
Seals: Polyethylene foam
Assembly tool: ABS plastic

Do not use scouring-powder, steel wool, hard or sharp tools which can damage the surface.

Assembly and installation
The installation shall be made in accordance with valid local building and plumbing regulations. If you are uncertain about the installation, contact a professional.
After a period of use check all connections to make sure they are tight.

What’s included
Waste grill is included.

Sold separately
Wash-basin plug not included.
Overflow kit not included.

Combine and complete
Fits IKEA double bowl wash-basins. Also fits two semi-recessed wash-basins when the wash-stands, width 60 or 80 cm, are placed together.
Fits Ø32 and 40 mm outlets, both in wall and floor.

Additional information
Waste outlet pipe diameter: 32 mm (1 1/4") / 40 mm (1 5/8").

IKEA of Sweden

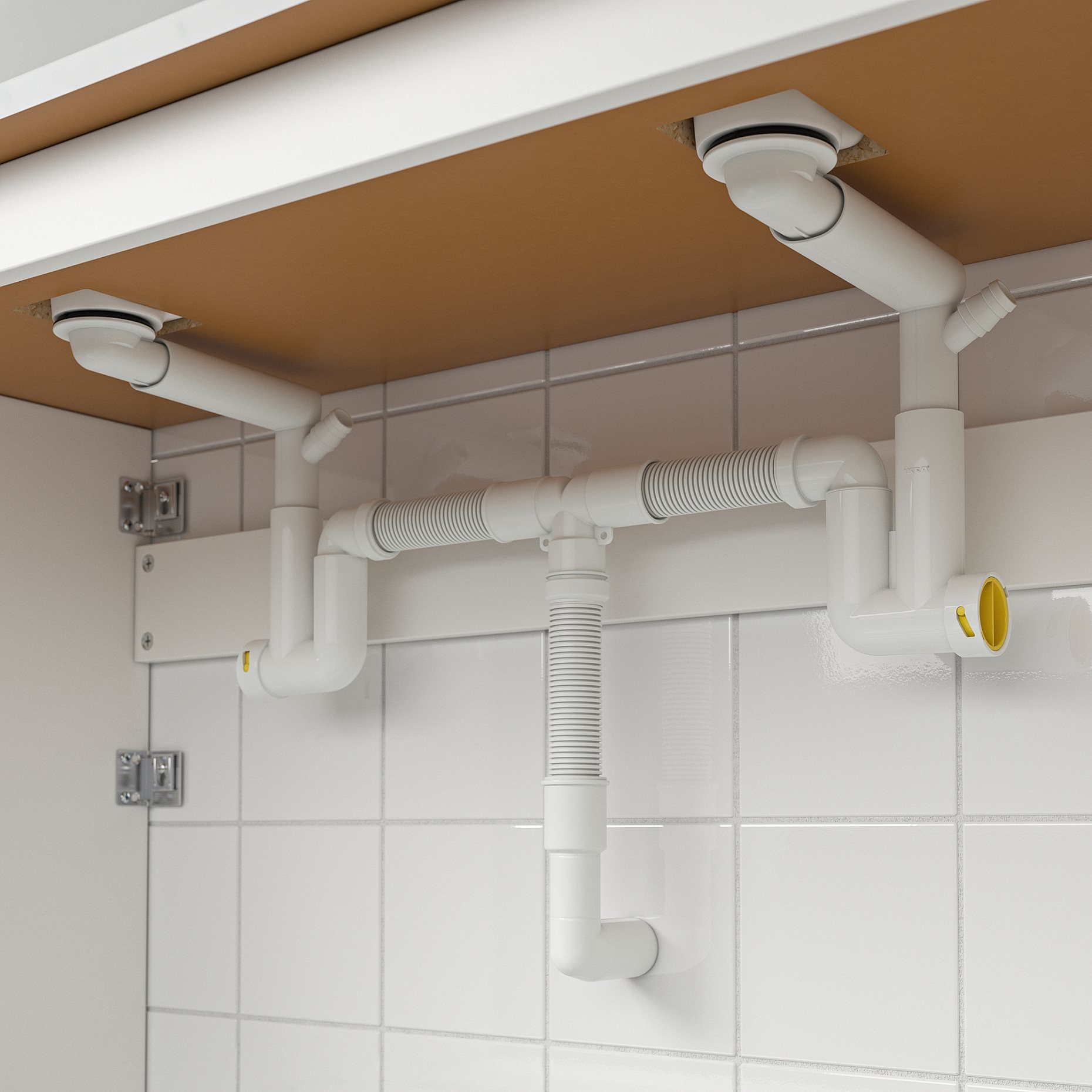

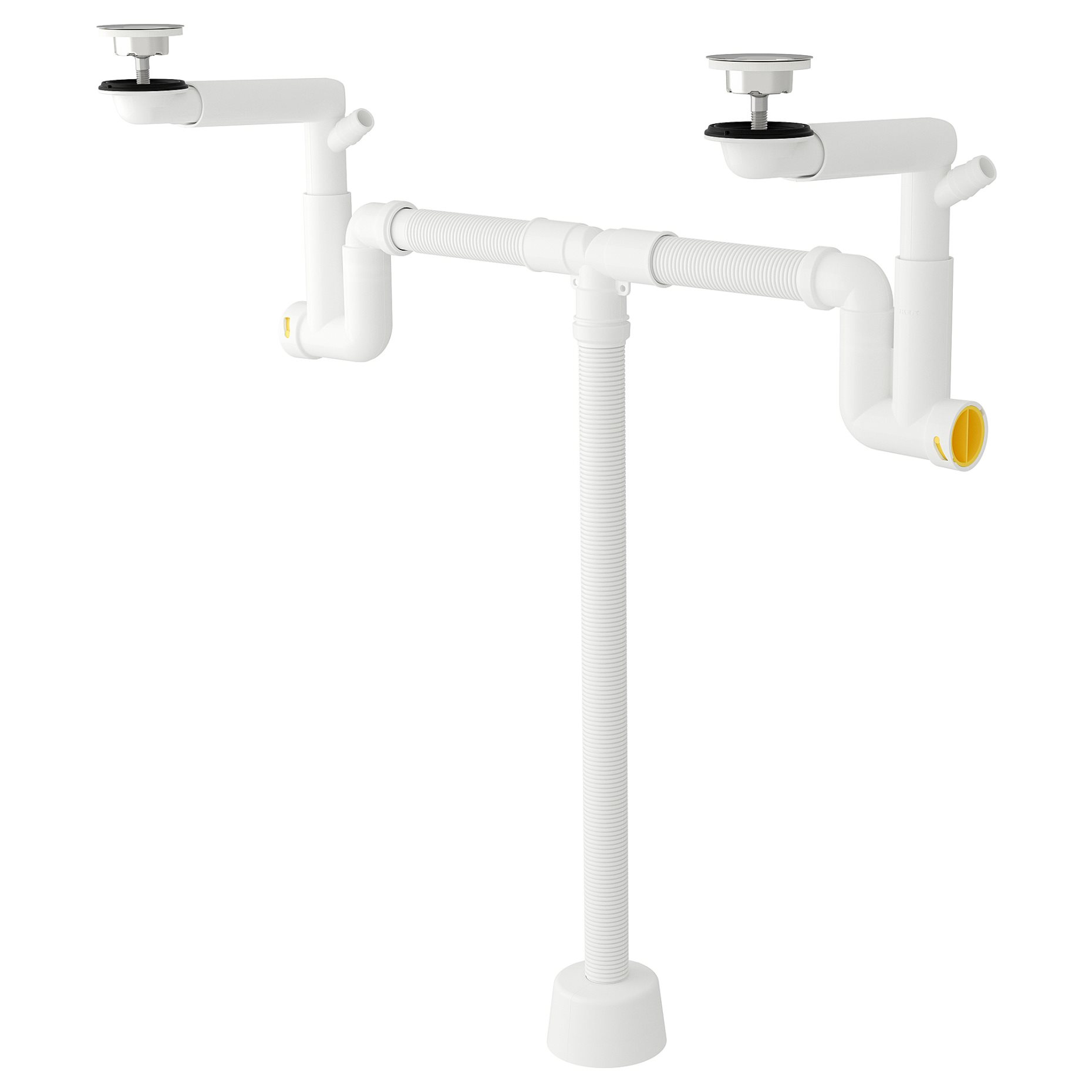

Telescopic water trap enables you to adjust the length to make room for a drawer - or to connect to a drain, washing machine or tumble dryer.
Unique water trap design gives room for a full sized drawer.
The universal design with flexible piping and adjustable length enables fit with all types of wash-basins.
Twist and remove plug for easy cleaning.
10 year guarantee. Read about the terms in the guarantee brochure.

Multi
