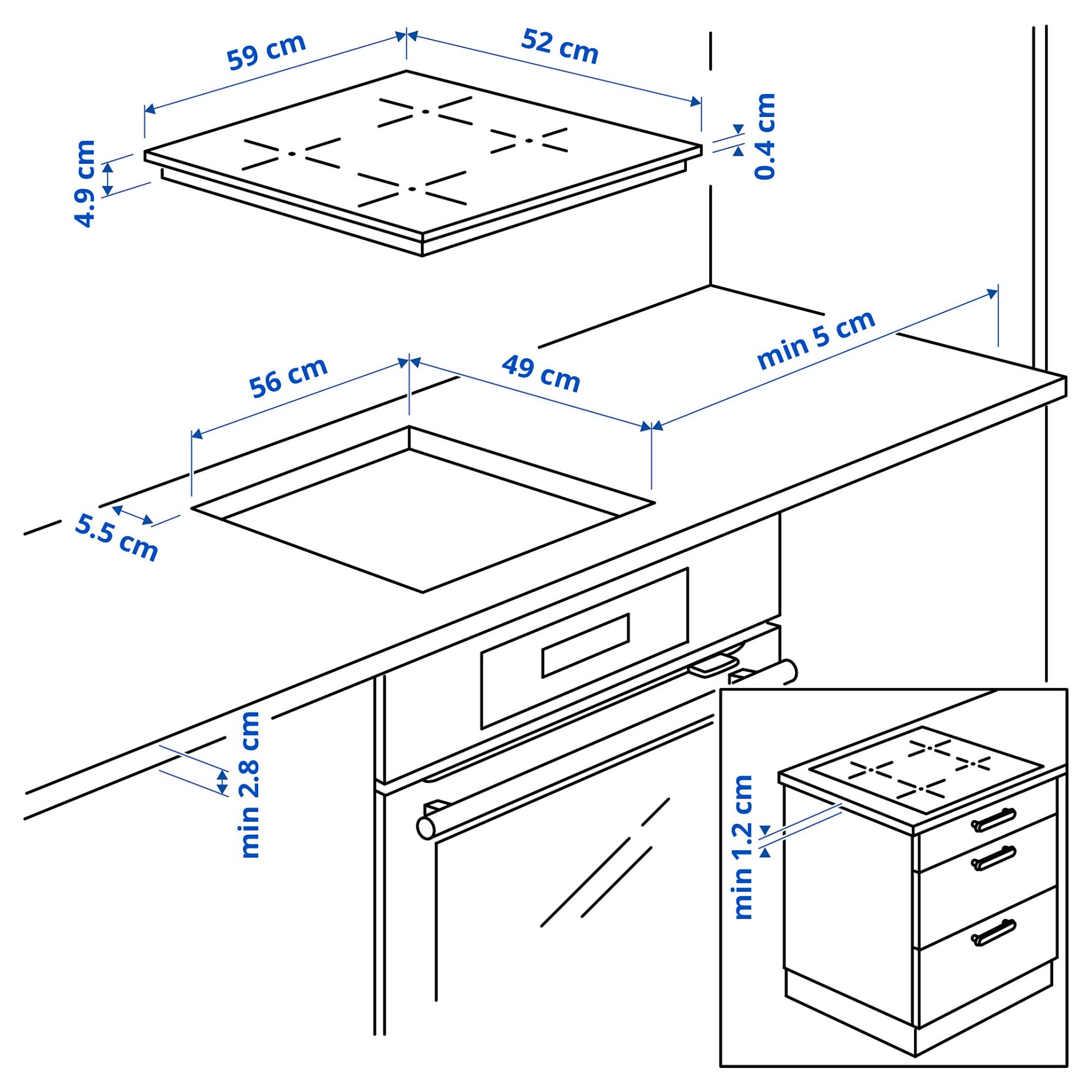

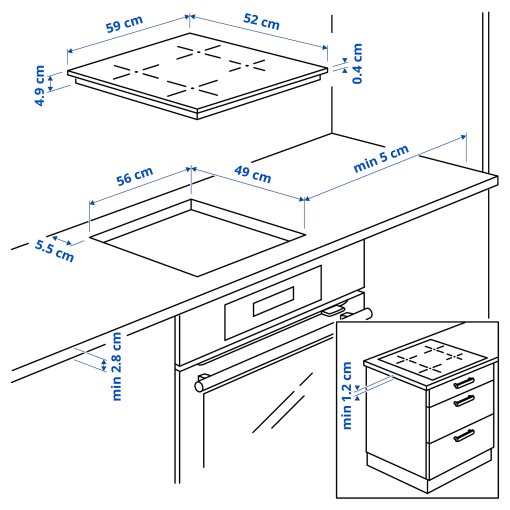

Width: 59.0 cm
Depth: 52.0 cm
Height: 4.9 cm
Weight: 10.54 kg
Cut-out width: 56.0 cm
Cut-out depth: 49.0 cm

Package : 1
Length : 68 cm
Width : 60 cm
Height : 12 cm
Diameter :
Gross Volume : 49.6 l

Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
After cleaning, be sure to wipe dry with a soft cloth.
Remove stains and food residue after each use using a cloth damped with warm water and a mild detergent.

Safety and compliance
This product bears the UK CA mark.

Safety and compliance
This product bears the CE mark.

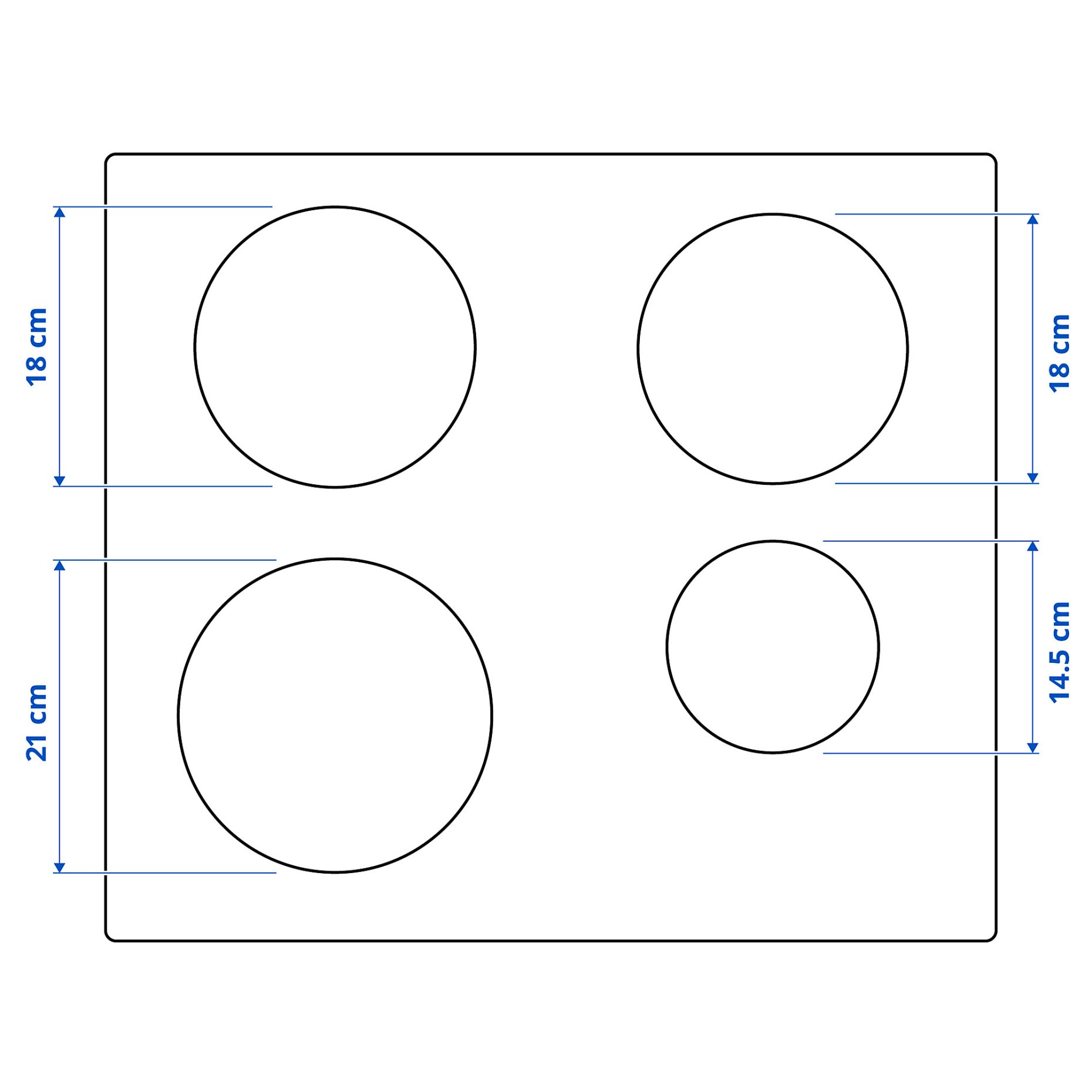

Hob with induction cooking zones:
Right front: 14.5 cm – 1400W.
Left front: 21 cm – 2300W, booster 3200W.
Left rear: 18 cm – 1800W.
Right rear: 18 cm - 1800W, booster 2500W.
Connection rating: 7350W.


Number of zones: 4.
Pause.
Child lock.
Timer.
Booster (2 zones).
Touch and press.

Assembly and installation
Cord/cable not included. Wired-in installation. Installation must be made by a qualified electrician or specialist.
When installing your hob in a base cabinet with drawers, complete with NYTTIG hob separator for drawer. The protective barrier prevents reaching the hob from below and getting burned.
Cooking zones are grouped (left or right) and connected to phases, each with a maximum power supply. When using more than one zone connected to the same phase, the hob divides the power between them.
The power setting of the last selected cooking zone is prioritised. Power to the previously activated cooking zone is reduced to match the maximum supply.
You will find complete information about the installation and use of this product under the tab Assembly instructions & documents.

Additional information
Induction hobs requires cookware with magnetic base.
The hob may produce low humming, whistling or ticking sounds. These sounds are caused by the induction technology and they are completely normal.

IKEA of Sweden

5 year guarantee. Read about the terms in the guarantee brochure.
Induction hobs are extremely energy efficient, fast and precise as induction technology transfers energy directly into magnetic cookware.
The booster feature delivers additional power to a single cooking zone. This kind of rapid intense heat is ideal for boiling water, stir frying food or searing meat.

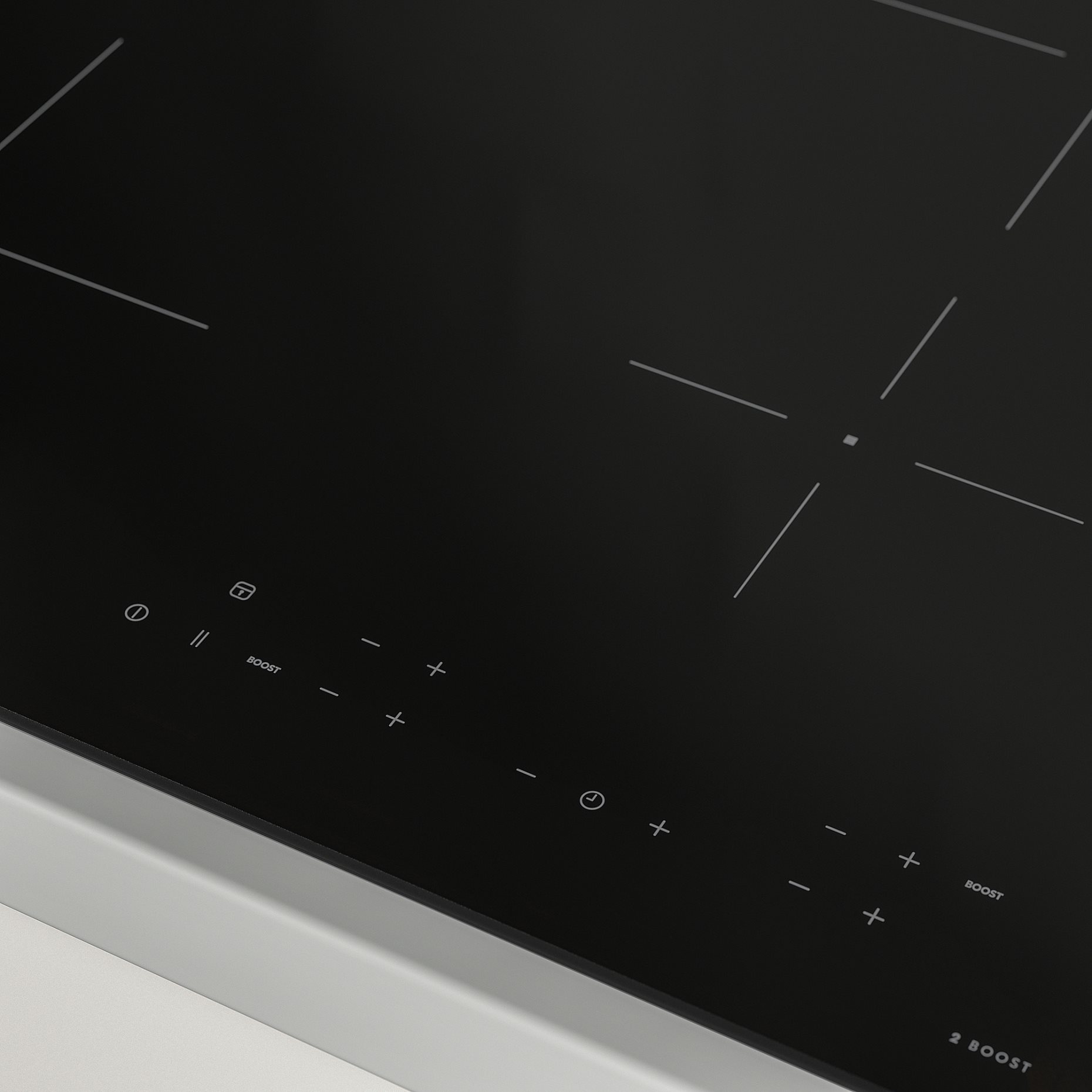

The touch/press control panel allows you to regulate the heat easily and precisely by just touching the + and – symbols.
You have excellent control when you cook since the individual timers allow you to time each zone separately. For example perfect for boiling eggs, rice or pasta.
Pause function allows you to suspend the cooking process if you're interrupted, then re-start again at the same temperature in an instant. When the pause function is activated the cooking zone is automatically switched to the “keep warm” setting.
By holding the lock key for 4 seconds you activate the child lock and cleaning function temporarily, and clean the surface without changing any settings.
Easy to clean by just wiping with a damp cloth or sponge as spills from food or liquids do not burn on the surface.
Anti-overflow detection feature automatically switches off the hob if cooking content boils over and spills onto the control panel.

Multi
