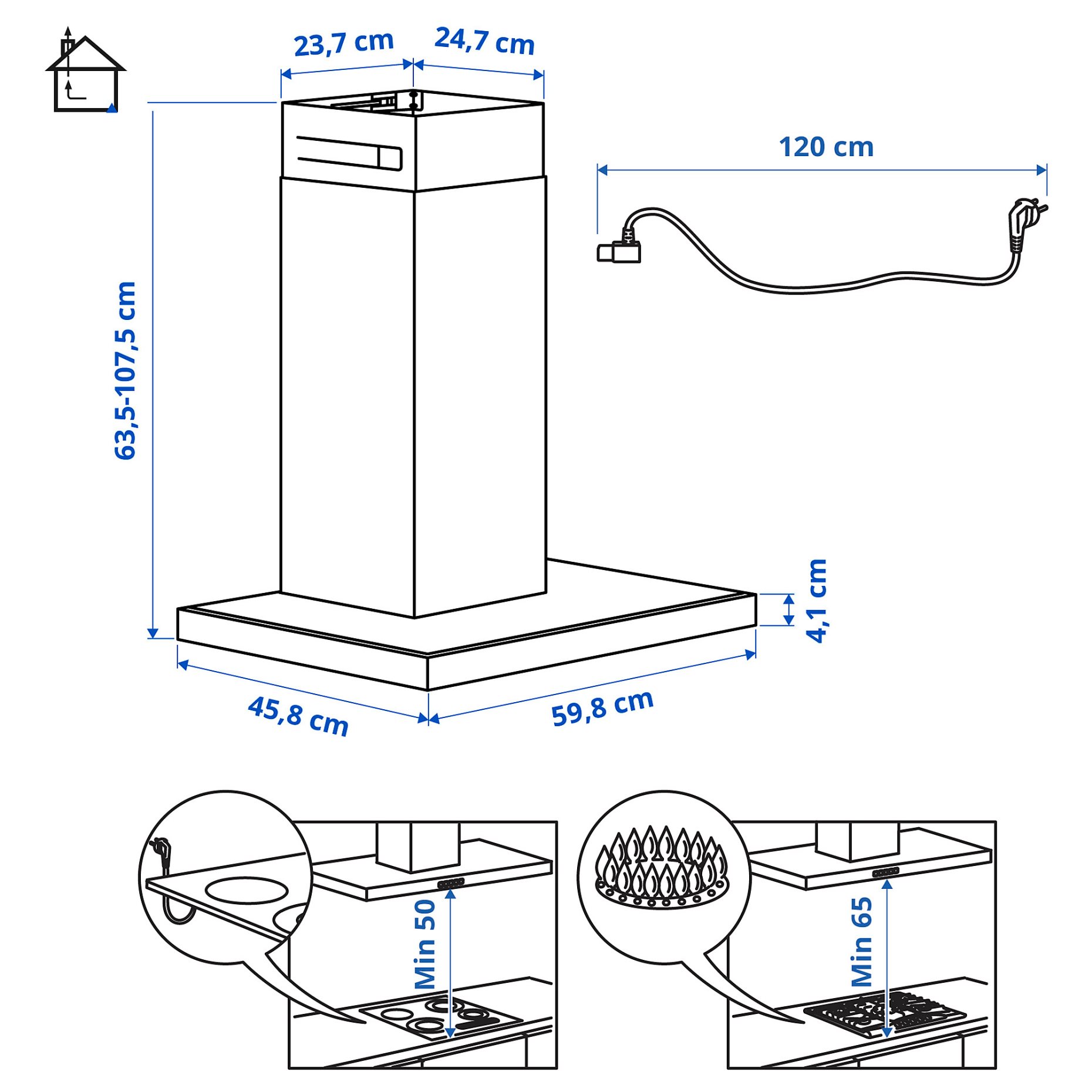

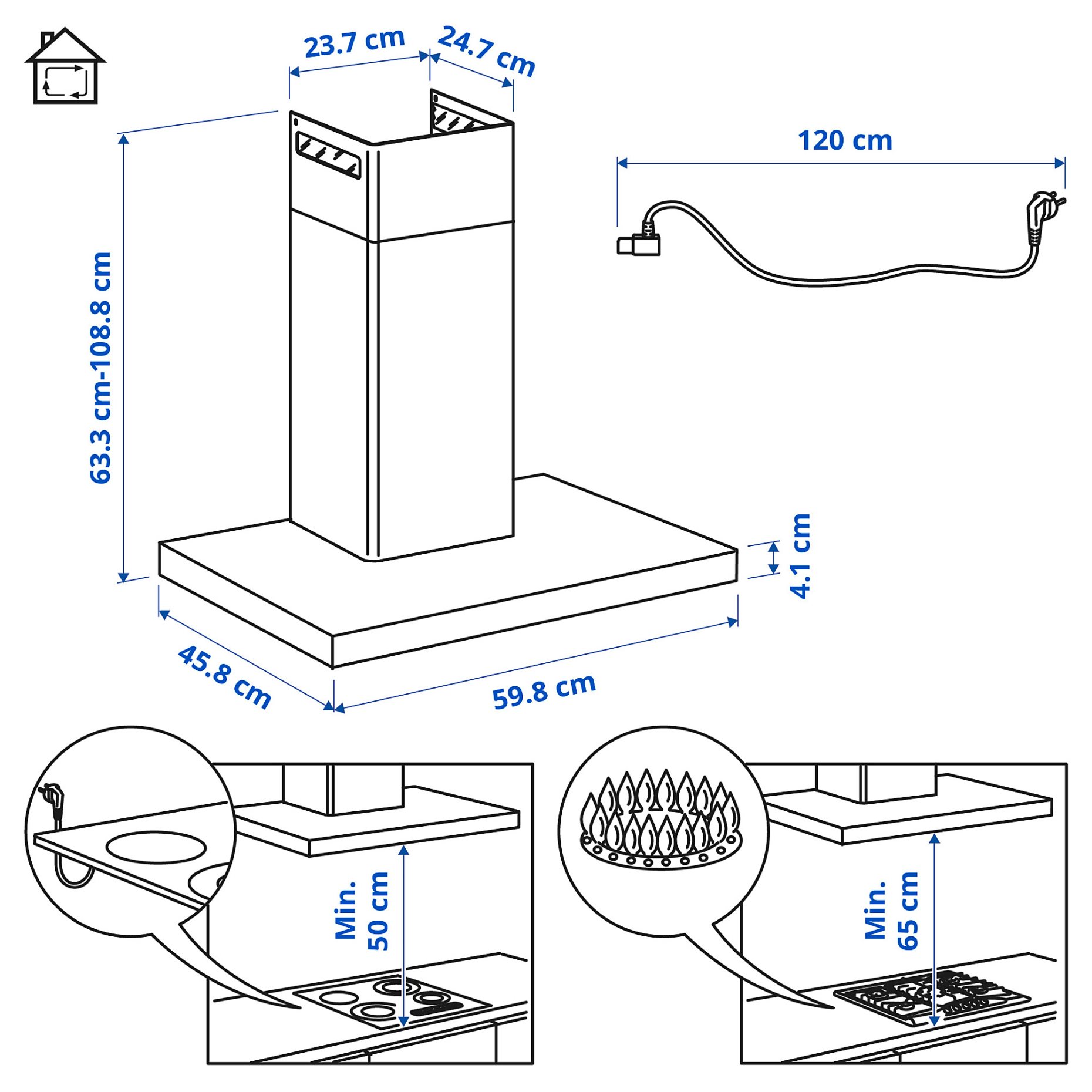

Width: 59.8 cm
Depth: 45.8 cm
Height: 42.0 cm
Min. height extraction: 63.5 cm
Max. height extraction: 107.5 cm
Min. height recirculation: 63.3 cm
Max. height recirculation: 108.8 cm
Width of chimney: 23.7 cm
Depth of chimney: 24.7 cm
Weight: 12.90 kg
Cord length: 120.0 cm
Motor power: 210 W

Package : 1
Length : 64 cm
Width : 57 cm
Height : 36 cm
Diameter :
Gross Volume : 130.9 l

Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.
Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.

Extraction rate in exhausting mode: 511 m³/h.
Extraction rate in re-circulation mode: 398 m³/h.

Assembly and installation
For recirculation installation: to be completed with NYTTIG tube 150 and charcoal filter NYTTIG FIL 559.

Sold separately
Flexible pipe for fan and charcoal filter sold separately.

Safety and compliance
This product bears the CE mark.

IKEA of Sweden

5 year guarantee. Read about the terms in the guarantee brochure.

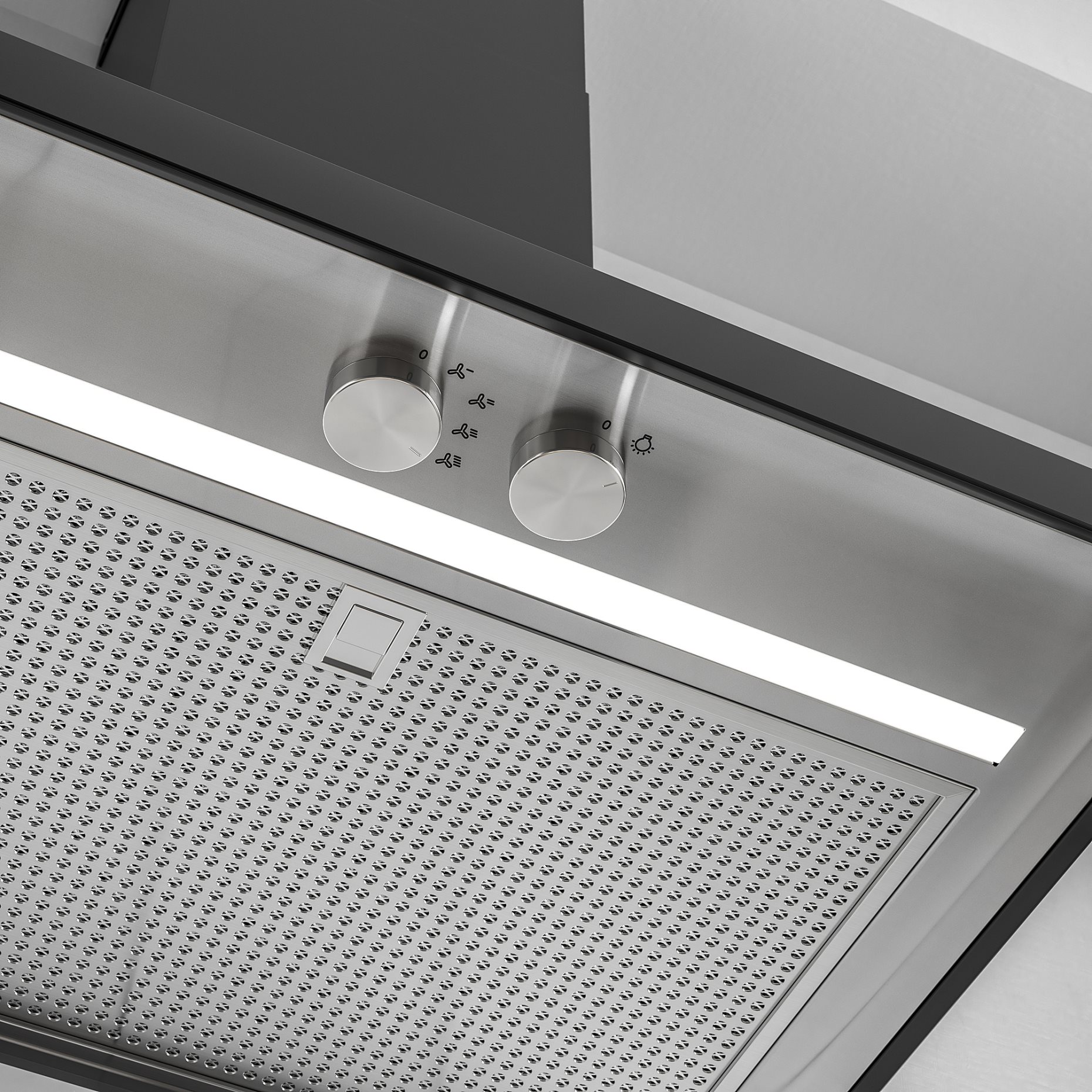

LED light source included; effectively illuminates the cooking surface and provide energy saving.
Can be installed in two ways: ducted to the outside or in recirculation mode fitted with charcoal filter.
You can easily remove and clean the grease filter in the dishwasher. 1 grease filter included.
