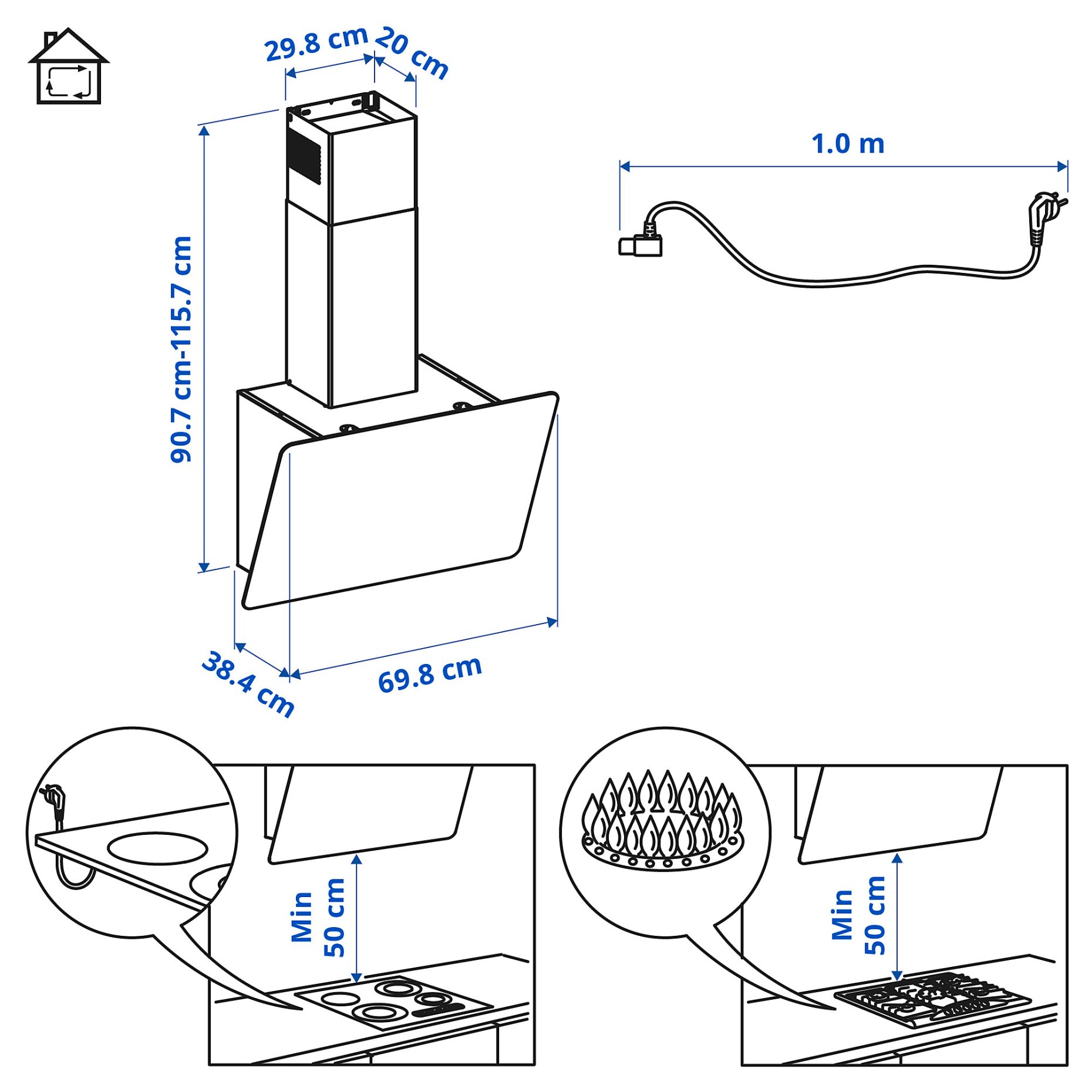

Width: 69.8 cm
Depth: 38.4 cm
Width of chimney: 29.8 cm
Depth of chimney: 20.0 cm
Weight: 15.50 kg
Cord length: 100.0 cm
Max. height extraction: 105.7 cm
Min. height extraction: 78.2 cm
Max. height recirculation: 115.7 cm
Min. height recirculation: 90.7 cm
Motor power: 270 W

Package : 1
Length : 79 cm
Width : 60 cm
Height : 51 cm
Diameter :
Gross Volume : 241.7 l

Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.
Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.

Extraction rate in exhausting mode with booster function: 740 m³/h.
Extraction rate in re-circulation mode: 380 m³/h.

Additional information
This product bears the CE mark.

Assembly and installation
For recirculation installation: to be completed with NYTTIG tube 150 and charcoal filter NYTTIG FIL 500.

Sold separately
Flexible pipe for fan and charcoal filter sold separately.

IKEA of Sweden

5 year guarantee. Read about the terms in the guarantee brochure.

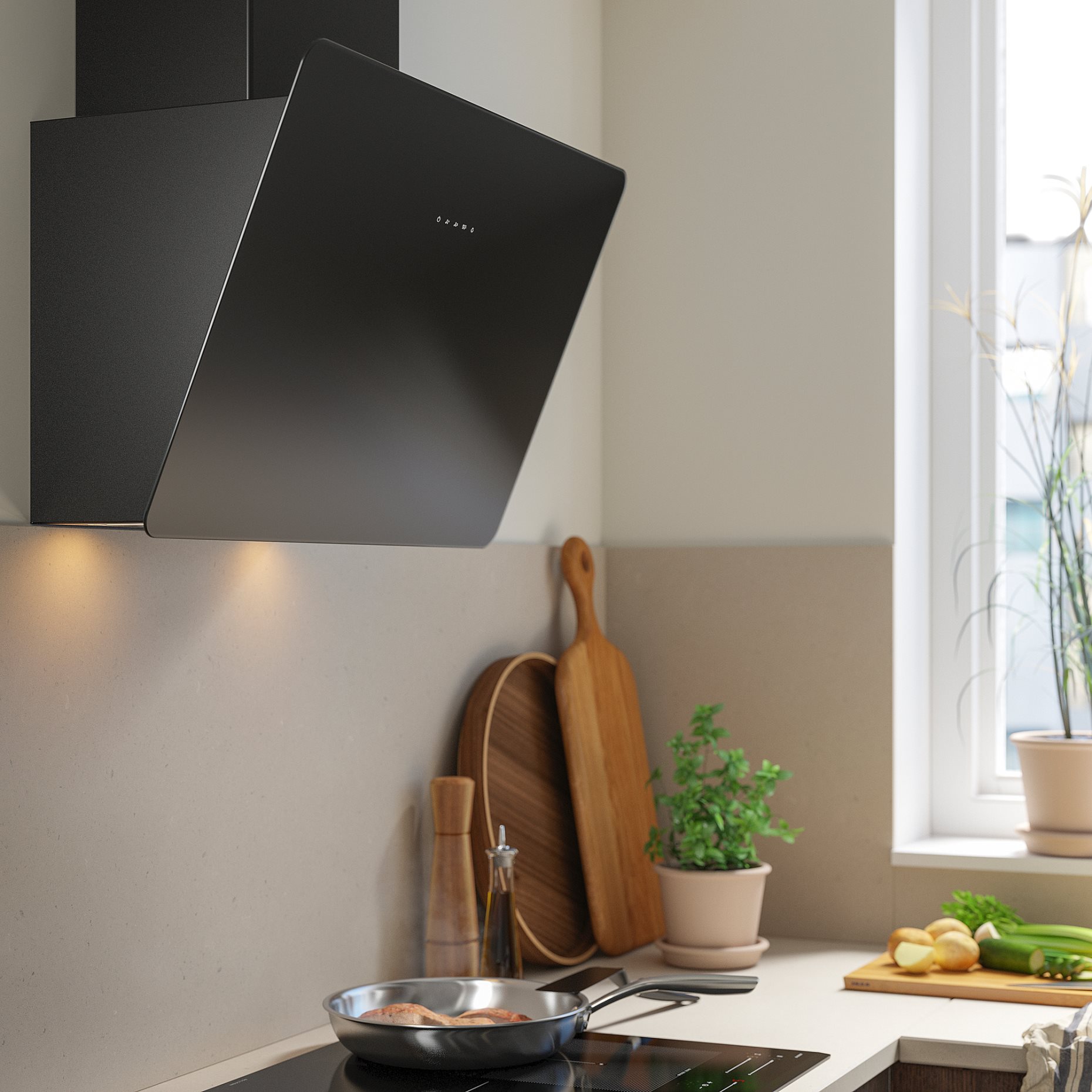

Dimmable LED strip included; effectively illuminates the cooking surface and provide energy saving.
The vertical angle of the fan allows you to easily see and reach saucepans and frying pans on the hob.
The tempered glass surface is easy to clean.

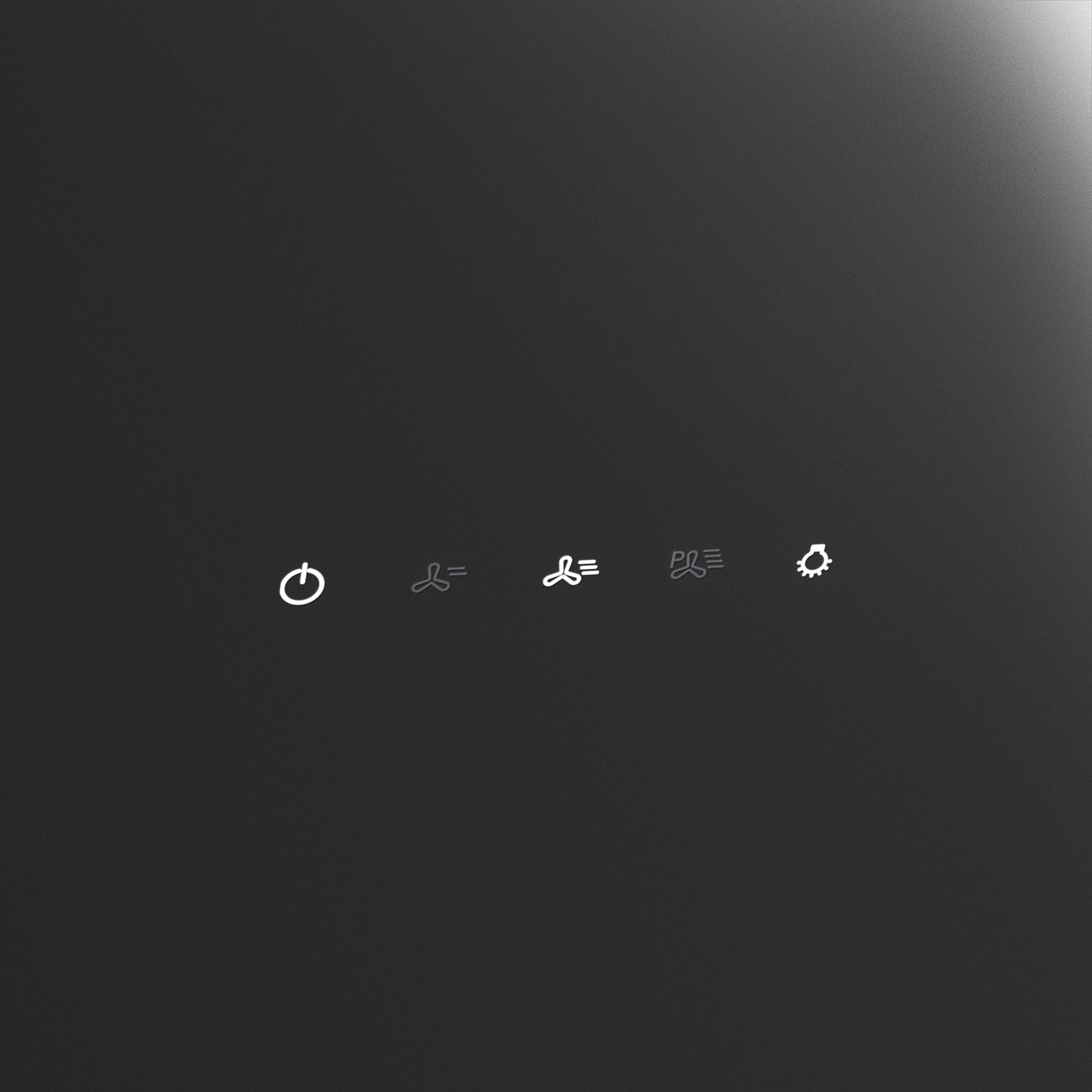

Touch-control panel is easy to access and use, since it is placed in the front.
Easy to open. Just pull the glass part towards you to be able to clean or replace the filter.
Can be installed in two ways: ducted to the outside or in recirculation mode fitted with charcoal filter.
