Width: 59.0 cm
Depth: 51.0 cm
Height: 5.4 cm
Weight: 10.00 kg
Cord length: 150.0 cm

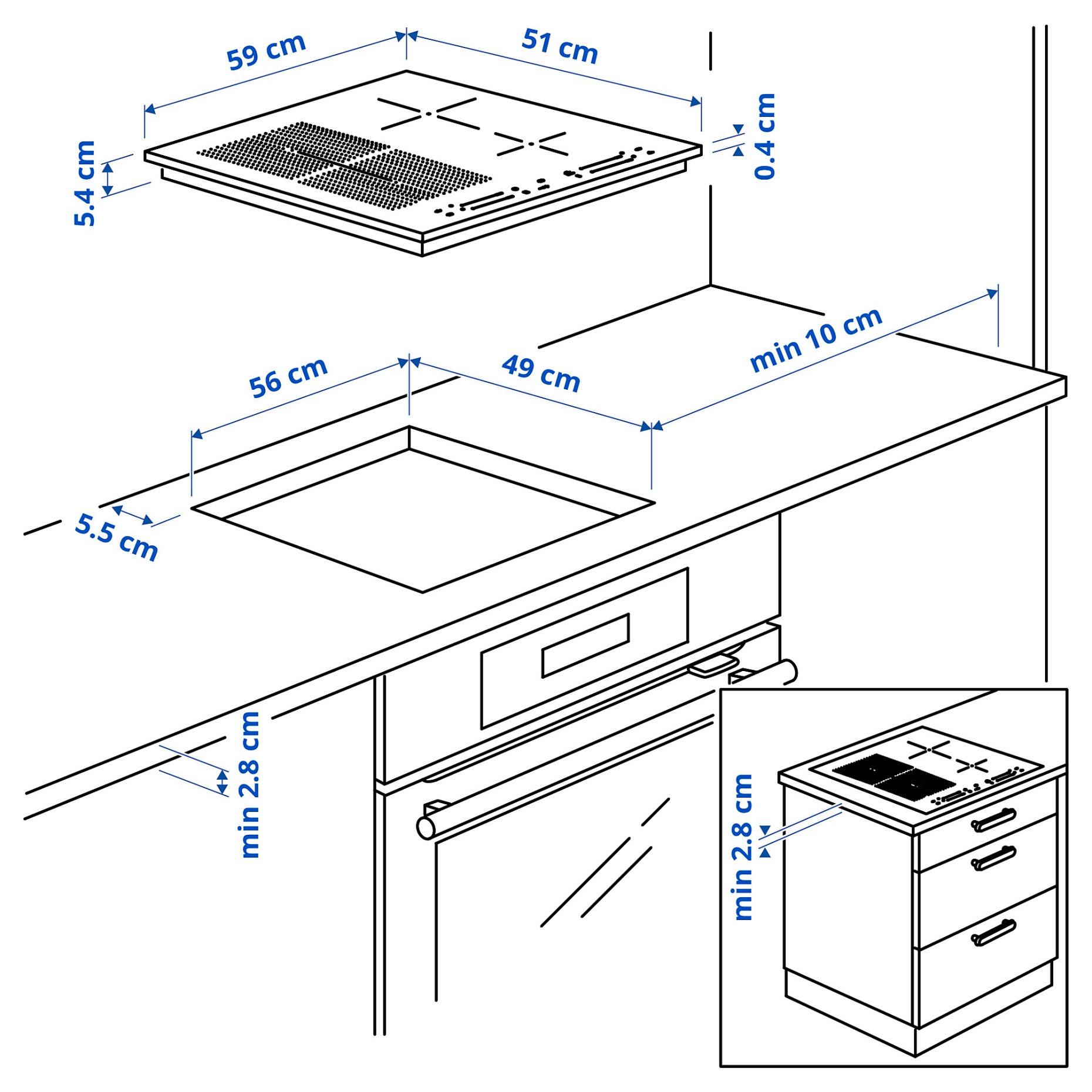

Cut-out width: 56.0 cm
Cut-out depth: 49.0 cm

Package : 1
Length : 65 cm
Width : 60 cm
Height : 10 cm
Diameter :
Gross Volume : 39.3 l

Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
After cleaning, be sure to wipe dry with a soft cloth.
Remove stains and food residue after each use using a cloth damped with warm water and a mild detergent.

Safety and compliance
This product bears the UK CA mark.
This product bears the Serbian mark of conformity.

Safety and compliance
This product bears the CE mark.

Performance

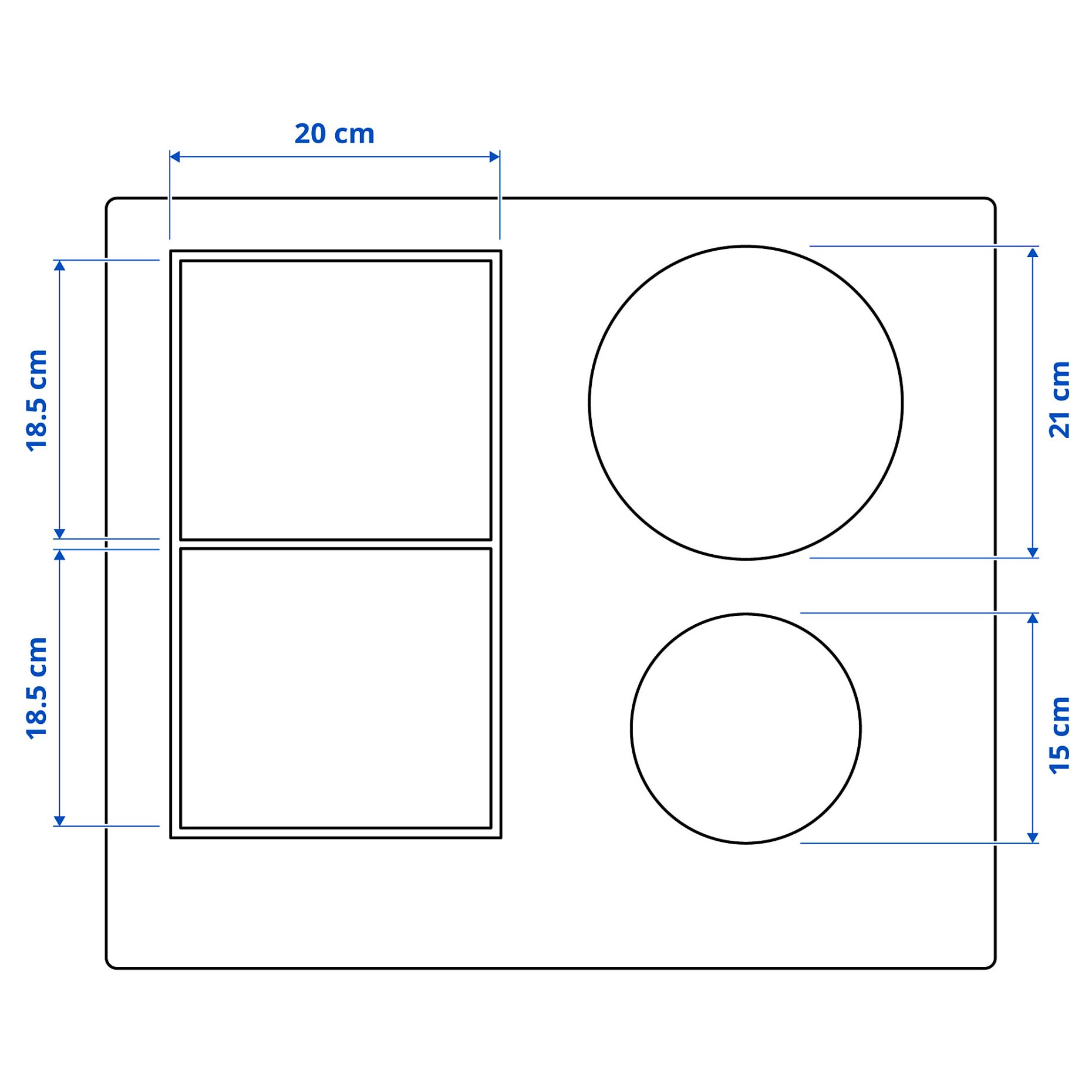

Hob with induction cooking zones:
Left front: 18,5x20 cm - 1750W, booster 2200W.
Left rear: 18,5x20 cm - 1750W booster 2200W.
Right front: 15 cm – 1200W, booster 1600W.
Right rear: 21 cm - 2100W, booster 3000W.
Voltage: 220-240V.
Current: 2x16A or 1x32A.
Connection rating: 7200W.

Functions
Number of zones: 4.
Pause.
Child lock.
Booster (4 zones).
Bridge function.
Touch and slide.
Pre-set cooking mode.

Assembly and installation
Wired-in installation. Installation to be made by a qualified installer.
When installing your hob in a base cabinet with drawers, complete with NYTTIG hob separator for drawer. The protective barrier prevents reaching the hob from below and getting burned.
Cooking zones are grouped (left or right) and connected to phases, each with a maximum power supply. When using more than one zone connected to the same phase, the hob divides the power between them.
The power setting of the last selected cooking zone is prioritised. Power to the previously activated cooking zone is reduced to match the maximum supply.
You will find complete information about the installation and use of this product under the tab Assembly instructions & documents.

Additional information
Induction hobs requires cookware with magnetic base.
The hob may produce low humming, whistling or ticking sounds. These sounds are caused by the induction technology and they are completely normal.

What’s included
Cord/cable included.

IKEA of Sweden

5 year guarantee. Read about the terms in the guarantee brochure.
Induction hobs are extremely energy efficient, fast and precise as induction technology transfers energy directly into magnetic cookware.
Gives you the flexibility to use larger and different pots for special recipes or occasions as the bridge function allows you to connect 2 cooking zones into 1 large one when needed.
The touch and slide control panel allows you to regulate the heat easily and precisely by sliding your finger across the temperature scale or touching the desired temperature on the display.
You have excellent control when you cook since the individual timers allow you to time each zone separately.
With the auto-cook function, each zone is pre-set to either warm, melting, boiling or simmering. To quickly adjust the heat, slide the pan to the desired zone and press the auto-cook symbol.
The power booster feature (P) delivers additional power to a single cooking zone. This kind of rapid intense heat is ideal for boiling water, stir frying food or searing meat.
Pause function allows you to suspend the cooking process if you're interrupted, then re-start again at the same temperature in an instant. When the pause function is activated the cooking zone is automatically switched to the “keep warm” setting.
By holding the lock key for 4 seconds you activate the child lock and cleaning function temporarily, and clean the surface without changing any settings.
Easy to clean by just wiping with a damp cloth or sponge as spills from food or liquids do not burn on the surface.
Anti-overflow detection feature automatically switches off the hob if cooking content boils over and spills onto the control panel.
